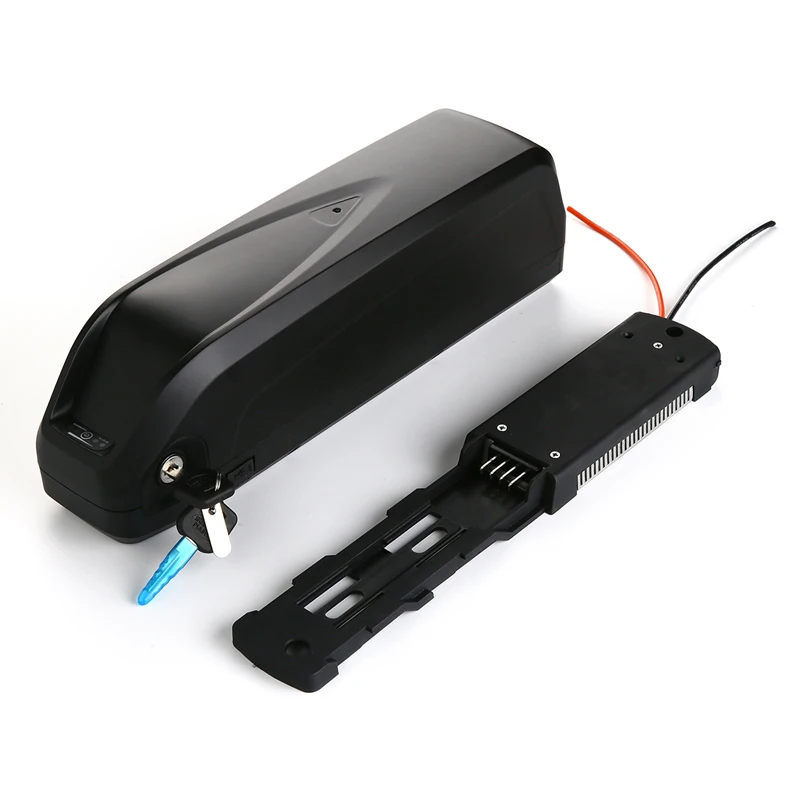

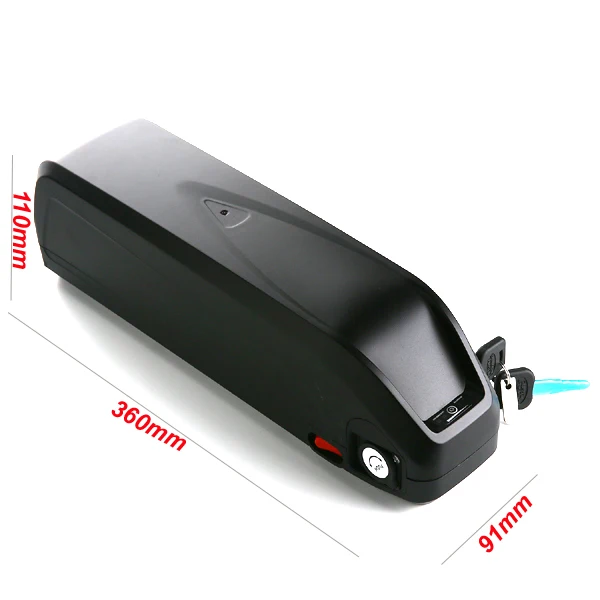

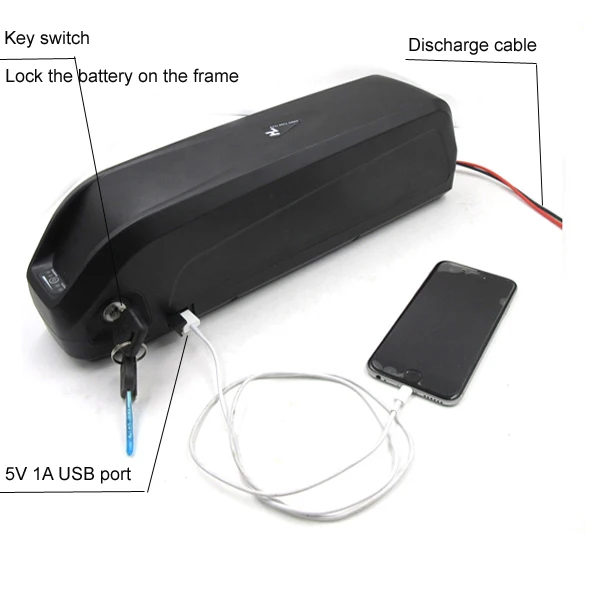

Battery Model 3620 Voltage 36V Capacity: 20AH Type: 3.7v 3C18650 cell Source Resistance 40 Charge Way of charge CC/CV Standard charge Current 2A Max charge current 5A Charge Cut-off Voltage 42.0V CellOvercharge protection Voltage 4.2V/CELL Discharge Continouns Discharge Current 30Amp Peak Discharge Current 100Amp Cell Overdischarge Voltage 2.8v/cell Discharge Cut-off Voltage 28.0v Cycle Life 1000 times Safety test No firs ,No explosion Overcharge Safety Test Crush Safety test Needling safety test 130 C high Temperature safety test Weight 4.0kg Size 91*110*360mm Fit moto power Less1080w Working Temperature 0C—45C -20C---65C Retention of charge >95% Certificate CE,UL,ROSH,UN38.3,MSDS Application E-bike,E-motorcycle,E-scooter Warranty One year Charger Parameters Applying Battery Type: Lithium Input Voltage (AC/V): 100 TO 240V Output Current (A): 2A Output Voltage (DC/V): 42.0V Charging Mode: CC/CV Type of DC Output Connector: PLUG Applications: E-Bike, Electric Bike, E-Scooter, Electric Scooter ! (Suitable Wattage of Motor: from 250 Watt to 1080 Watt suggested.) 36V 20AH 1000W Li-Po /Li-ionBatterywith Hailong Case,BMS and Charger: Parts included: 1. Lithium Battery with Hailong case 2. Built-in BMS board 3. Charger (42.0V 2.0A 100-240V 50/60HZ US ,UK,EU ,AU PLUG) This battery can fit these motor kits and so on 36V 250W BAFANG BBS01 Brushless Geared Mid-Drive Motor eBike Conversion Kits 36V 350W BAFANG BBS01 Brushless Geared Mid-Drive Motor eBike Conversion Kits 36V 500W BAFANG BBS02 Brushless Geared Mid-Drive Motor eBike Conversion Kits TONGSHENG TSDZ2 36V 350W Brushless Geared Mid-Drive Motor eBike Conversion Kits TONGSHENG TSDZ2 36V 250W Brushless Geared Mid-Drive Motor eBike Conversion Kits BAFANG 36V 350W 8Fun Brushless Geared Mid-Drive Motor Conversion Kits with integrated Controller and LCD Display Integrated Controller. With an integrated speed sensor, this mid-drive motor, which is compatible with standard bikes, has a rated power of 250-350W, a reduction ratio of 1: 21.9 and a maximum torque of 80 N.m, providing ideal power for vehicles. Light but strong and efficient, this motor greatly enhances riding comfort and is suitable for touring bikes and commuter bikes. This motor is black Products Details : Position: Mid Motor. Construction: Geared Motor. Rated Voltage (DCV): 36/48V.(36/48V) Loading of 0W (Rpm): 83/87rpm. Rated Power (W): 350W Loading of 250W (Rpm): 75/80rpm.(75/80rpm) Max Torque: 80 N.m. Efficiency (%): ≥ 80% Pedal Sensor: Speed sensor. Shaft Standard: JIS Weight (kg): 3.8 kg Speed Detection Signal (Pulses/Cycle): N/A Reduction Ratio: 1:21.9 Magnet Poles (2P): 16 Noise Grade ( dB): < 55 dB Hall Sensor: optional Connector: Waterproof. IP: IP 65 Certifications: CE/EN 14764/ROHS BAFANG 36V 500W 8Fun Brushless Geared Mid-Drive Motor Conversion Kits with integrated Controller and LCD Display Integrated Controller. With an integrated speed sensor, this mid-drive motor, which is compatible with standard bikes, has a rated power of 500-750W, a reduction ratio of 1: 21.9 and a maximum torque of 100-120 N.m, providing ideal power for vehicles. Light but strong and efficient, this motor greatly enhances riding comfort and is suitable for touring bikes and commuter bikes. This motor is black Products Details Position: Mid Motor. Construction: Geared Motor. Rated Voltage (DCV): 36/48V.(36/48V) Loading of 0W (Rpm): 110/130rpm Rated Power (W): 500-750W Max Torque: 100 N.m. Efficiency (%): ≥ 80%. Pedal Sensor: Speed sensor. Shaft Standard: JIS Weight (kg): 4.2 kg Speed Detection Signal (Pulses/Cycle): N/A Reduction Ratio: 1:21.9 Magnet Poles (2P): 16 Noise Grade ( dB): < 55 dB Hall Sensor: optional Connector: Waterproof. IP: IP 65 Certifications: CE/EN 14764/ROHS Do not immerse the battery in water or seawater, and keep the battery in a cool dry surrounding if it stands by. Does not use or leave the battery near a heat source as fire or heater Use the battery charger specifically for that purpose when recharging. Do not reverse the position and negative terminals. Do not connect the battery electrodes to an electrical outlet. Do not discard the battery in fire or a heater. Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects. Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc. Do not strike, trample or throw the battery. Do not directly solder the battery and pierce the battery with a nail or other sharp objects 1. Cells -A grade cellsto make sure batteries inhigh and full capacity 2. Protection -Dual IC chips, that can anti-short circuit, anti-over charger, anti-over current, anti-overload 3. Compose Type : Injection Technology tomake battery more stable. 4. Certifications : CE,UL,FCC, RoHS, ISO9001 5. Long life cycle, No memory, environment friendly. Our BMS consists of Master BMS Circuitry (we named “BMU”), Slave BMS Circuitry (we integrate itinto our battery module) and contactor.Besides the basic functions such as over charge/ discharge,over current, short circuit, overtemperature and balancing, Our BMS owns the following features, 1. Master-Slave architecture makesthe system flexible; 2. Two level warning makes maintenance easier; 3. CAN2.0 and industrial level electronic components make system reliable; 4. Contactor makes high rate charge & discharge feasible; 5. Periodic insulation measurement makes personnel safety possible; 6. Host can control the system easily; 1. High energy density 2. High working voltage for single battery cells 3. Pollution-free, environment friendly 4. Long cycle life; It extends its cycle life up to 800 cycles 5. Capacity, resistance, Voltage, platform time consistency is good 6. Simplifying battery management system (BMS) and a battery charger 7. With short-circuit production function, safe and reliable 8. Factory price & High quality 9. Fast charging 10. Light weight, small size 11. Large overcharge tolerance and safe performance 12. Self balance 1.Light electricvehicles: such as electric bicycle, golf car, small-scale electric flat car, forklift, cleanness car, electric wheelchairs 2. Large-scale electric vehicles: such as bus, electric car, tourist car and commix car 3. Electric tool: electric drill, electric saw, lawn mower 4. Remote control cars, boat, aircraft, toys, 5. Solar and wind power generation energy storage devices 6. UPS emergency lights, warning lights and miners lamp 7. Small medical equipment and portable equipment 8.Widely used for Electric bicycle,golf car,electric wheelchair,power tools,scooter, UPS,Solar&Wind energy storage system,EV,etc. Experience We have more than 10years experience in producing Nicd&NiMH&Lithium battery cell and pack,7years of experience to manufacture Lithum ion battery,the factory passed ISO 9001:2008 certification. Strict process management and control Each process for making battery were under strict management and control,all of the battery wereunder full inspection before delivery. After-sales service Support prompt shipment and sample quality products,track the cargo in time after delivery.More than one year Guarantee,there are safety and operating instructions for your reference. Quick response to clients' enquiries within 12hrs Tailor-made solution provided by our experienced team and professional engineers for lithium polymer battery More than 10 years experience in producing battery products for various application. Value quality and long-term cooperation to reach win-win relationship.
